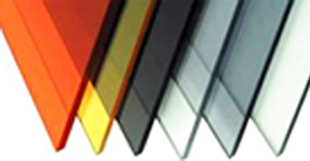

抗靜電塑料板

摘要

防靜電功能優秀

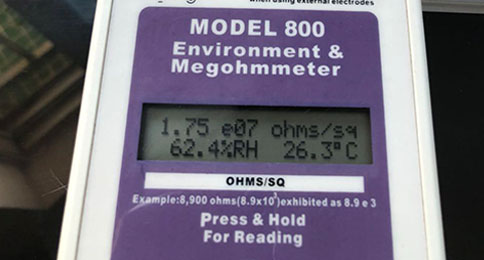

因為表面抵抗率達 10E6~10E8?歐姆/㎡, 所以能有效防止靜電發生。
表面硬度優秀(耐擦傷性)
因為表面做了 硬化 處理, 所以可防止擦傷。
耐化學性優秀
因為表面做了 硬化 處理, 所以對溶劑等化學物的耐性及耐候性非常優秀。
表面秀麗
表面有光澤、透明, 具有丙烯固有的外觀。

應用領域

Semiconductor Manufacturing and Other Pertinent Equipment

  • Clean benches
  • Clean drafts
  • Cleaners
  • Wafer carrying boxes
  • Desiccators
  • Clean storage
  • Cases
  • Covers and partitions
  • Clan ducts

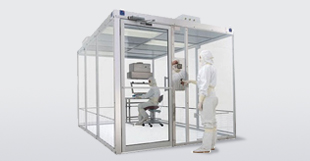

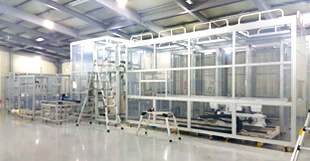

Clean Rooms

  • Clean funnels
  • Windows
  • Room partitions
  • Covers
  • Louvers
  • Galleries

Others

  • Meter covers
  • Machine covers
  • Displays
  • Viewing Windows
  • Various casings
  • Part boxes

Datasheet

The Specification of Anti-static Plate

FIeld
Items
ASTM
Unit
DCR-805-V0
DCR-805
DCR-705
DCR-605
polycarbonate
polycarbonate
PMMA
 PVC
Basic
Specific gravity
 D792 1.20 1.20 1.19 1.40
Optical
Total light transmittance
 D1003 % 84 84 88 73
Haze
 D1003 % 0.9 0.9 0.4 3.6
Mechanical
Tensile strength at brake
 D638 Mpa 71 71 70 50
Elongation at brake
 D638 % 115 115 2.5 7
Fiexural strength
 D790 Mpa 88 88 90 80
Impact strength(charpy)
 D256 kj/m3 13 13 1.6 2.3
Rockwell hardness
 D785 76 76 100 76
Thermal
Deflection temp (under loading)
 D648 ℃ 127 127 95 65
Thermal expansion coefficient
 D696 /℃ 5.2*108 5.2*108 6.0*108 6.7*108
Thermal cycle
 no change no change no change no change
Electrical
Surface resistivity
 D257 ohm/cm 106~108 106~108 106~108 106~108
Volume resistivity
 D257 ohm/cm >1015 >1015 >1015 >1015
Chemical resistance(#1)
Acetone
 0 0 0 0
IPA
 0 0 0 0
Hydrochloric acid (36%)
 0 0 0 0
Nitric acid (60%)
 0 0 0 0
Sulfuric acid (97%)
 0 0 0 0
Miscellaneous
Water absorption
 D570 % 0.15 0.15 0.3 0.2
Pencil hardness
 D3363 HB HB 4H HB
Steel wool test
 Slighty scratched Slighty scratched no scratched scratched
Combustibility
 D635 Self-extinguishing Self-extinguishing Flammable Self-extinguishing
UL standard
 UL94 V-0 V-2 HB V-0
